D313403

D313403
D313403

直線運(yùn)動(dòng)單元, M(F/G)06: CLAMP SHORT CASTED


  • Clamp only. Mounting screw not included.
  • Tighten Screws to 5.5 Nm

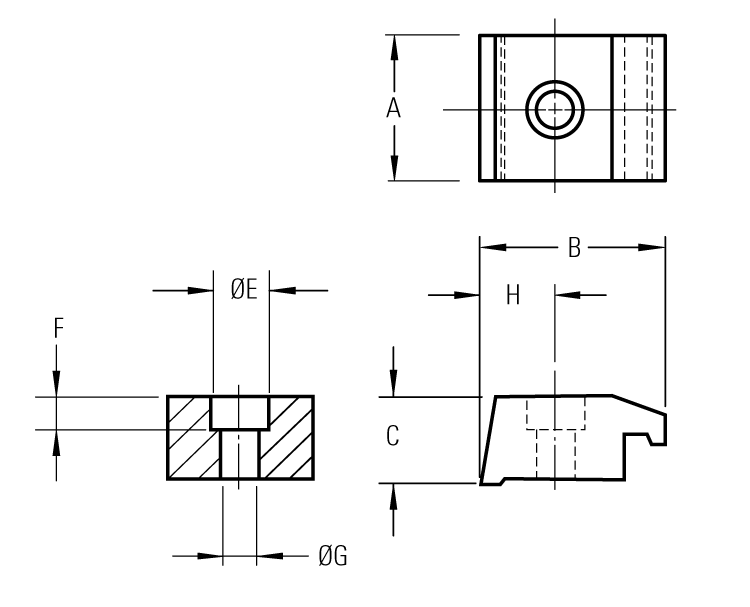

Dimensions

dimensions
尺寸價(jià)值
[A]25 毫米
[B]25.5 毫米
[C]10.7 毫米
[D]41 毫米
[E]9.5 毫米
[F]5.3 毫米
[G]5.5 毫米
[H]10.2 毫米

Specifications

Specifications價(jià)值
Use withM55
